Design and Production of Industrial Rubber Components

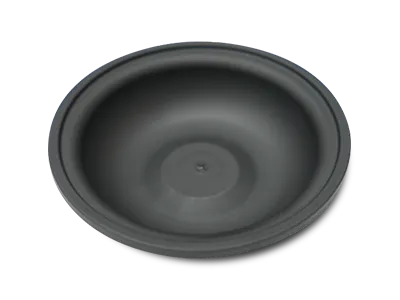

Industrial Rubber Components

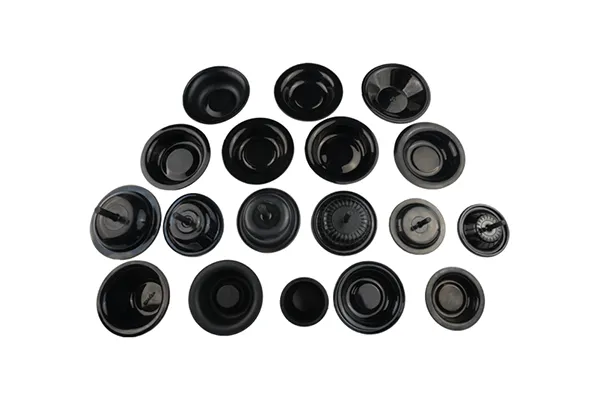

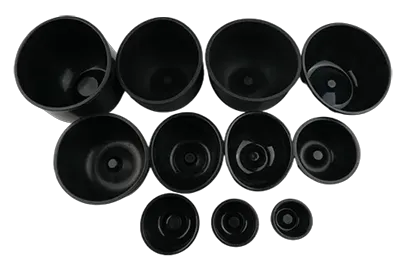

Rubber Diaphragms
  • Rubber Diaphragms
    Rubber Diaphragms for Rock Drill Machines
  • Rubber Diaphragms
    Rubber Diaphragms for Crushers and Construction Machinery
  • Rubber Diaphragms
    Rubber Diaphragms for Accumulators

    • Rubber Diaphragms

    We provide customized flat diaphragms, convoluted diaphragms, dish-shaped diaphragms, and rolling diaphragms for diverse applications

    • Resistance to extreme conditions: Performs reliably in extreme environments from low temperatures (-10°C to -70°C) to high temperatures (100°C to 300°C).
    • High durability and longevity: Service life from 200,000 to 12 million cycles.
    • Impact and chemical resistance: Excellent resistance to shock, strong acids, strong alkalis, and abrasion.
    • Available materials: Custom rubber formulations, rubber composite, engineered rubber, styrene-butadiene rubber (SBR), ethylene propylene diene monomer (EPDM), chloroprene rubber (CR), hydrogenated nitrile rubber (HNBR), nitrile butadiene rubber (NBR), chlorinated ether rubber (ECO), and other advanced formulations.
    Request a Quote

    Available Specifications

    Rubber Diaphragms for Rock Drill Machines

    (Size: Diameter×Height)

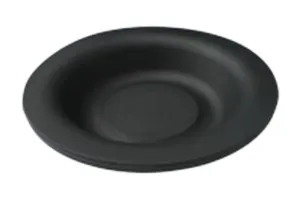

    Rubber Diaphragm (HC-109)
    Rubber Diaphragm (HC-109)

    Size: Ø114×24mm
    Part No.: 86634003
    Factory code: SN901119

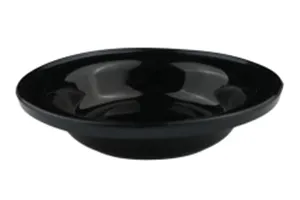

    Rubber Diaphragm (HC-95)
    Rubber Diaphragm (HC-95)

    Size: Ø99×22mm
    Part No.: 86723764
    Factory code: SN901156

    Rubber Diaphragm (HC-25)
    Rubber Diaphragm (HC-25)

    Size: Ø88×20mm
    Part No.: 86633922
    Factory code: SN901118

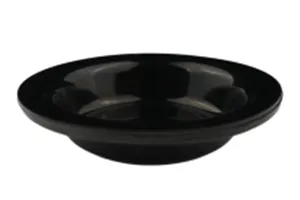

    Rubber Diaphragm (HC-50)
    Rubber Diaphragm (HC-50)

    Size: Ø114×24mm
    Part No.: 86633963
    Factory code: SN901117

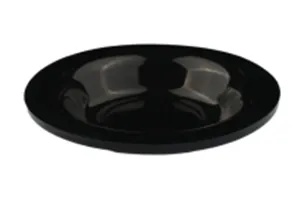

    Rubber Diaphragm (HC-150)
    Rubber Diaphragm (HC-150)

    Size: Ø114×17mm
    Part No.: 86634003
    Factory code: SN901120

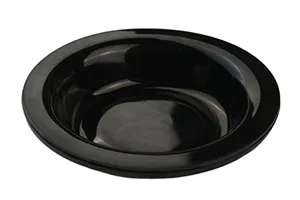

    Rubber Diaphragm (HC-110)
    Rubber Diaphragm (HC-110)

    Size: Ø115×31mm
    Factory code: SN901159

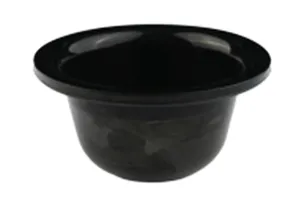

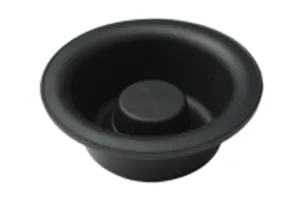

    Rubber Diaphragm (COP 1838+)
    Rubber Diaphragm (COP 1838+)

    Size: Ø100×36mm
    Part No.: 31152472-00
    Factory code: SN901178

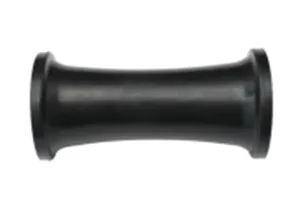

    Rubber Diaphragm (COP 1838)
    Rubber Diaphragm (COP 1838)

    Size: Ø55×108mm
    Part No.: 3115192602
    Factory code: SN901107

    Rubber Diaphragm (COP 1838)
    Rubber Diaphragm (COP 1838)

    Size: Ø100×62mm
    Part No.: 311518220
    Factory code: SN901109

    Rubber Diaphragm (COP 1838+)
    Rubber Diaphragm (COP 1838+)

    Size: Ø100×58mm
    Part No.: 31152472-00
    Factory code: SN901108

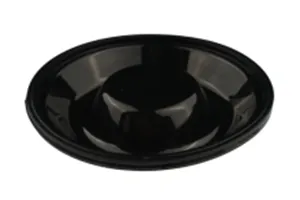

    Rubber Diaphragm (TL-000)
    Rubber Diaphragm (TL-000)

    Size: Ø118×20mm
    Part No.: 04114808
    Factory code: SN901132

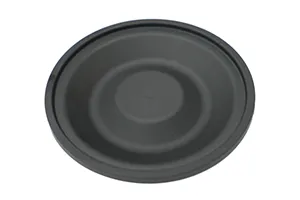

    Rubber Diaphragm (RD314)
    Rubber Diaphragm (RD314)

    Size: Ø112×15.5mm
    Part No.: 09260298
    Factory code: SN901168

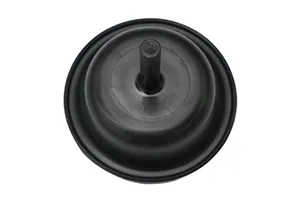

    Rubber Diaphragm (COP1840)
    Rubber Diaphragm (COP1840)

    Size: Ø99×62mm
    Part No.: 311518220
    Factory code: SN901109

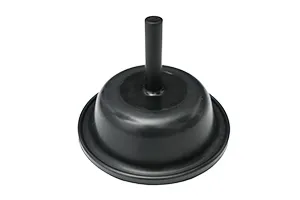

    Rubber Diaphragm (HL-700S/HL1500)
    Rubber Diaphragm (HL-700S/HL1500)

    Size: Ø120×75mm
    Part No.: 15235798
    Factory code: SN901112

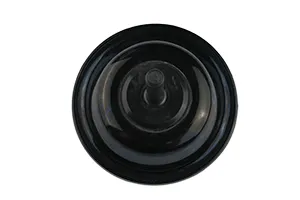

    Rubber Diaphragm (RD 18U)
    Rubber Diaphragm (RD 18U)

    Size: Ø99×65mm
    Part No.: 3201195384
    Factory code: SN901164

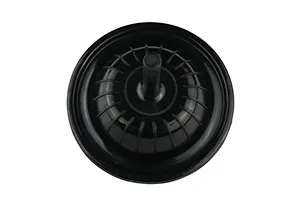

    Rubber Diaphragm (RM18-3593)
    Rubber Diaphragm (RM18-3593)

    Size: Ø84×53.4mm
    Part No.: 3115359300
    Factory code: SN901125

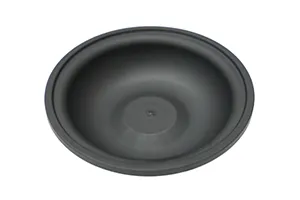

    Rubber Diaphragm (Sandvik)
    Rubber Diaphragm (Sandvik)

    Size: Ø119×32.5mm
    Factory code: SN901162

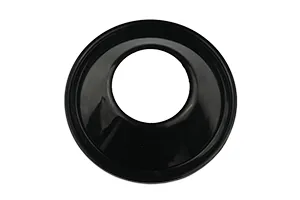

    Rubber Diaphragm (YH-80)
    Rubber Diaphragm (YH-80)

    Size: Ø116×26mm
    Factory code: SN901146

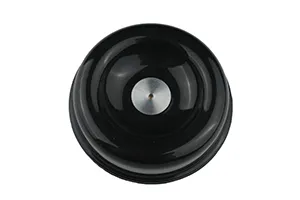

    Rubber Diaphragm (HYD200)
    Rubber Diaphragm (HYD200)

    Size: Ø104×29mm
    Factory code: SN901127

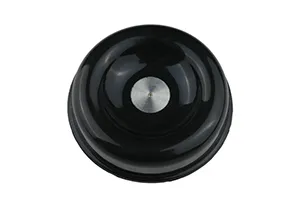

    Rubber Diaphragm (HYD300/HYD350)
    Rubber Diaphragm (HYD300/HYD350)

    Size: Ø109×37.6mm
    Factory code: SN901126

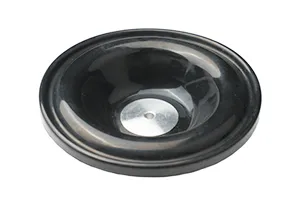

    Rubber Diaphragm (MBM76-19)
    Rubber Diaphragm (MBM76-19)

    Size: Ø75×25mm
    Factory code: SN901148

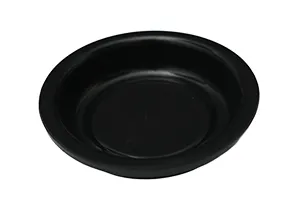

    Rubber Diaphragm (TOYO-656(L))
    Rubber Diaphragm (TOYO-656(L))

    Size: Ø89×20mm
    Factory code: SN901123

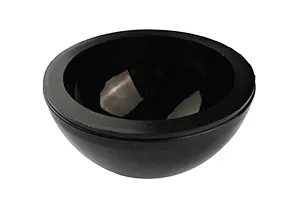

    Rubber Diaphragm (XW-68)
    Rubber Diaphragm (XW-68)

    Size: Ø127×65mm
    Factory code: SN901121

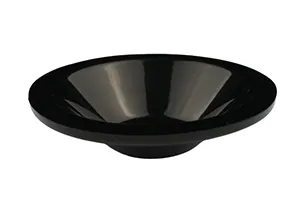

    Rubber Diaphragm (YH-65)
    Rubber Diaphragm (YH-65)

    Size: Ø115×21mm
    Factory code: SN901144

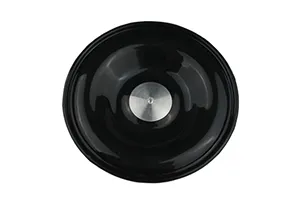

    Rubber Diaphragm (HM-300)
    Rubber Diaphragm (HM-300)

    Size: Ø113×22mm
    Factory code: SN901113

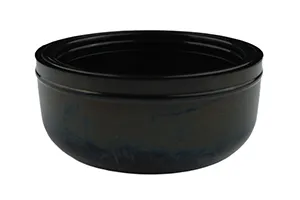

    Rubber Diaphragm (BH801)
    Rubber Diaphragm (BH801)

    Size: Ø75×33mm
    Factory code: SN901106

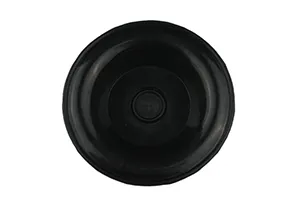

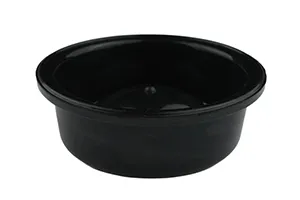

    Rubber Diaphragm (Rock Drill)
    Rubber Diaphragm (Rock Drill)

    Size: Ø100×35mm
    Factory code: SN901101

    Rubber Diaphragm (S25)
    Rubber Diaphragm (S25)

    Size: Ø111.5×22mm
    Factory code: SN900140

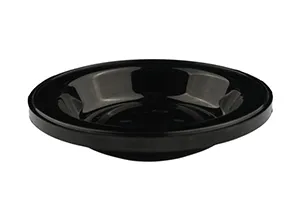

    Rubber Diaphragm (F6/HD-210)
    Rubber Diaphragm (F6/HD-210)

    Size: Ø110×18mm
    Factory code: SN900125

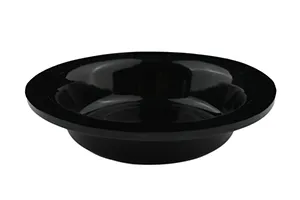

    Rubber Diaphragm (YH-80/2)
    Rubber Diaphragm (YH-80/2)

    Size: Ø117×27mm
    Factory code: SN901146

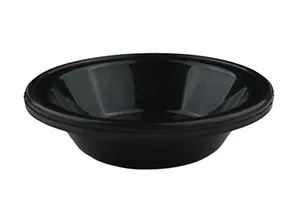

    Rubber Diaphragm (Doofor 430)
    Rubber Diaphragm (Doofor 430)

    Size: Ø92×18.4mm
    Factory code: SN901165

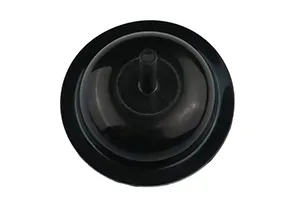

    Rubber Diaphragm (HL560)
    Rubber Diaphragm (HL560)

    Size: Ø113×64mm
    Factory code: SN901170

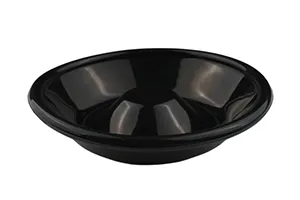

    Rubber Diaphragm (TFYY500-1-19B)
    Rubber Diaphragm (TFYY500-1-19B)

    Size: Ø132.5×28mm
    Factory code: SN901145

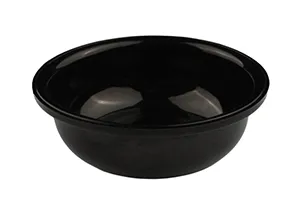

    Rubber Diaphragm (HYD-350)
    Rubber Diaphragm (HYD-350)

    Size: Ø109×37.6mm
    Factory code: SN901126

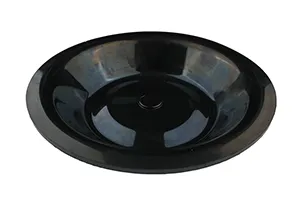

    Rubber Diaphragm (YH80)
    Rubber Diaphragm (YH80)

    Size: Ø117×27mm
    Factory code: SN901146

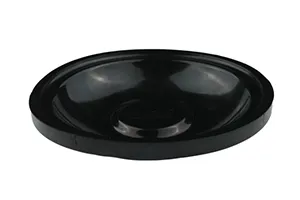

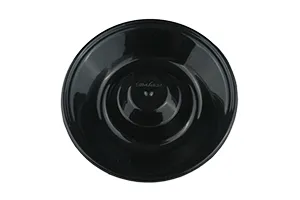

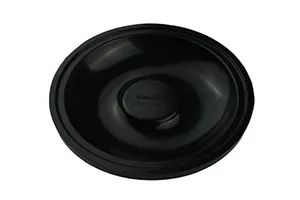

    Rubber Diaphragm (Rock Drill for Steel Plant)
    Rubber Diaphragm (Rock Drill for Steel Plant)

    Size: Ø125×22mm
    Factory code: SN901131

    Rubber Diaphragm (Rock Drill for Steel Plant)
    Rubber Diaphragm (Rock Drill for Steel Plant)

    Size: Ø132×23.5mm
    Factory code: SN901103

    Rubber Diaphragm (Rock Drill)
    Rubber Diaphragm (Rock Drill)

    Size: Ø85×15.5mm

    Rubber Diaphragm (Rock Drill for Steel Plant)
    Rubber Diaphragm (Rock Drill for Steel Plant)

    Size: Ø125×25mm
    Factory code: SN901143

    Rubber Diaphragms for Marine
    Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
    • Rubber Diaphragm 4LJ-Series W-Type
    Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
    • Rubber Diaphragm 10LJ-Series W-Type
    Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
    • Rubber Diaphragm 4LF-Series U-Type
    Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
    • Rubber Diaphragm 10LF-Series U-Type
    Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
    • Rubber Diaphragm 4LC-Series U-Type
    Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
    • Rubber Diaphragm 10LC-Series U-Type
    Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
  • Rubber Diaphragm 4L
    • Rubber Diaphragm 4LK-Series W-Type
    Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
  • Rubber Diaphragm 10L
    • Rubber Diaphragm 10LK-Series W-Type
    Rubber Diaphragms for Breakers/Hammers

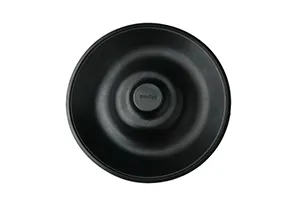

    Rubber Diaphragm (HM720/HM1000/HM1500)
    Rubber Diaphragm (HM720/HM1000/HM1500)

    Size: Ø170×20mm
    Factory code: SN900138

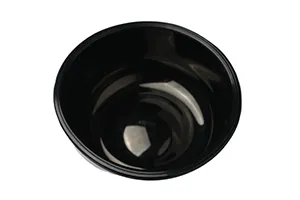

    Rubber Diaphragm (THBB 1600)
    Rubber Diaphragm (THBB 1600)

    Size: Ø160×80mm
    Factory code: SN900170

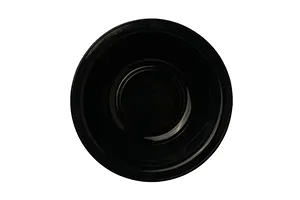

    Rubber Diaphragm (D-90)
    Rubber Diaphragm (D-90)

    Size: Ø240×60mm
    Factory code: SN900178

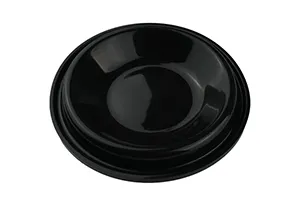

    Rubber Diaphragm (HM-360 SMALL)
    Rubber Diaphragm (HM-360 SMALL)

    Size: Ø196×35mm
    Factory code: SN900139

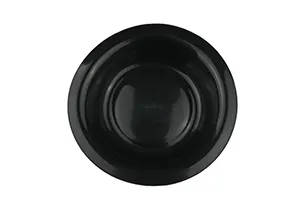

    Rubber Diaphragm (BRH-125)
    Rubber Diaphragm (BRH-125)

    Size: Ø178×35mm
    Factory code: SN900150

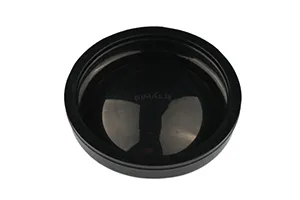

    Rubber Diaphragm (Ingersoll Rand Breaker)
    Rubber Diaphragm (Ingersoll Rand Breaker)

    Size: Ø97×16mm
    Factory code: SN900187

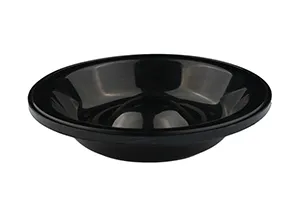

    Rubber Diaphragm (HB20G/SB81/SB100/KB2000)
    Rubber Diaphragm (HB20G/SB81/SB100/KB2000)

    Size: Ø170×35mm
    Factory code: SN900128

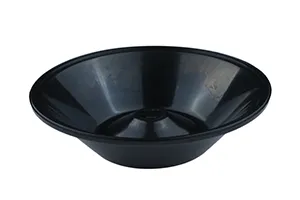

    Rubber Diaphragm (HM960)
    Rubber Diaphragm (HM960)

    Size: Ø185×50mm
    Factory code: SN900137

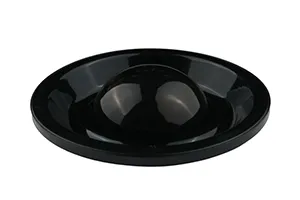

    Rubber Diaphragm (TR-300)
    Rubber Diaphragm (TR-300)

    Size: Ø165×45mm
    Factory code: SN900164

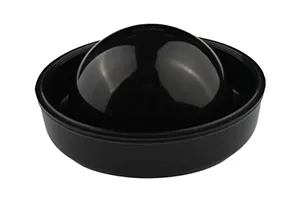

    Rubber Diaphragm (THBB1400/800)
    Rubber Diaphragm (THBB1400/800)

    Size: Ø157×70mm
    Factory code: SN900169

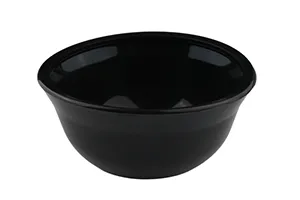

    Rubber Diaphragm (TNB-14E/TNB-13)
    Rubber Diaphragm (TNB-14E/TNB-13)

    Size: Ø144×65mm
    Factory code: SN900165

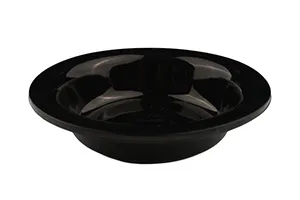

    Rubber Diaphragm (HB5G/HB3G)
    Rubber Diaphragm (HB5G/HB3G)

    Size: Ø100×17mm
    Factory code: SN900131

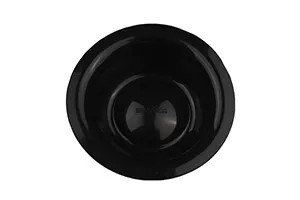

    Rubber Diaphragm (SB121/SB131)
    Rubber Diaphragm (SB121/SB131)

    Size: Ø192×40mm
    Factory code: SN900133

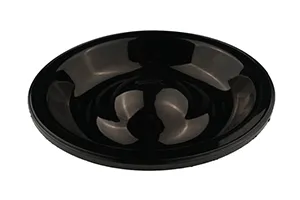

    Rubber Diaphragm (SB-151/141/150/140)
    Rubber Diaphragm (SB-151/141/150/140)

    Size: Ø205×45mm
    Factory code: SN900134

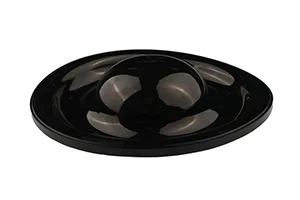

    Rubber Diaphragm (TR-210/220)
    Rubber Diaphragm (TR-210/220)

    Size: Ø165×35mm
    Factory code: SN900163

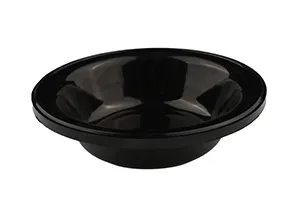

    Rubber Diaphragm (HB-15G/18G/F-19)
    Rubber Diaphragm (HB-15G/18G/F-19)

    Size: Ø150×40mm
    Factory code: SN900127

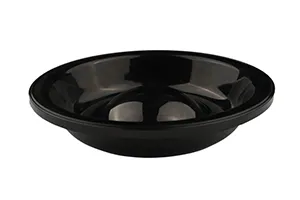

    Rubber Diaphragm (HB-30G/F-35)
    Rubber Diaphragm (HB-30G/F-35)

    Size: Ø190×40mm
    Factory code: SN900129

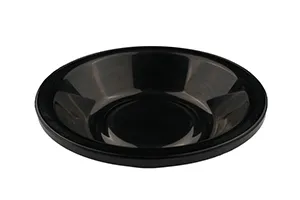

    Rubber Diaphragm (TOP 22)
    Rubber Diaphragm (TOP 22)

    Size: Ø160×35mm
    Factory code: SN900174

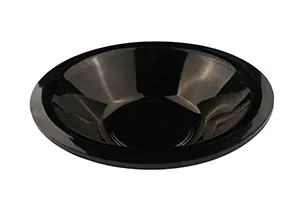

    Rubber Diaphragm (D110)
    Rubber Diaphragm (D110)

    Size: Ø265×75mm
    Factory code: SN900148

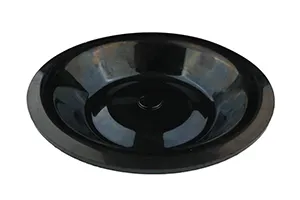

    Rubber Diaphragm (BRV45)
    Rubber Diaphragm (BRV45)

    Size: Ø260×50mm
    Factory code: SN900153

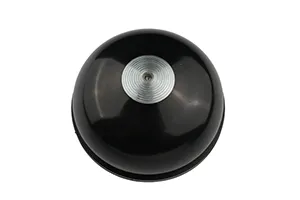

    Rubber Diaphragm (OUB-11/TNB-14E)
    Rubber Diaphragm (OUB-11/TNB-14E)

    Size: Ø144×65mm
    Factory code: SN900160

    Rubber Diaphragm (THBB-1600)
    Rubber Diaphragm (THBB-1600)

    Size: Ø160×80mm
    Factory code: SN900170

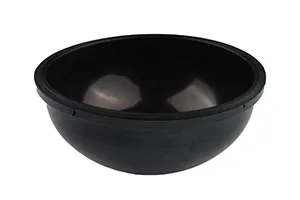

    Rubber Diaphragm (OUB316/OUB318/OUB17A2/2500)
    Rubber Diaphragm (OUB316/OUB318/OUB17A2/ 2500)

    Size: Ø200×90mm
    Factory code: SN900162

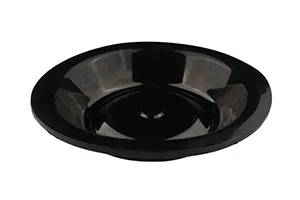

    Rubber Diaphragm (BRV55)
    Rubber Diaphragm (BRV55)

    Size: Ø289×57.8mm
    Factory code: SN900157

    Rubber Diaphragms for Welded Diaphragm Accumulators

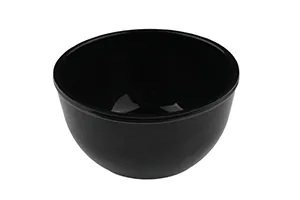

    Rubber Diaphragm 0.32L
    Rubber Diaphragm 0.32L

    Size: Ø81×46.8mm
    Factory code: SN905108

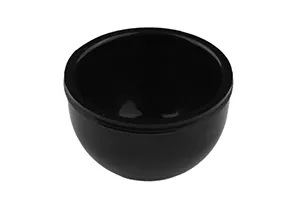

    Rubber Diaphragm 0.16L
    Rubber Diaphragm 0.16L

    Size: Ø62.2×40.2mm
    Factory code: SN905114

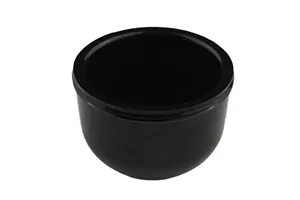

    Rubber Diaphragm 0.075L
    Rubber Diaphragm 0.075L

    Size: Ø54.1×39mm
    Factory code: SN905112

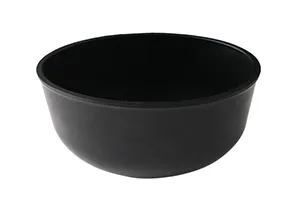

    Rubber Diaphragm 1.6L
    Rubber Diaphragm 1.6L

    Size: Ø138.4×76mm
    Factory code: SN905109

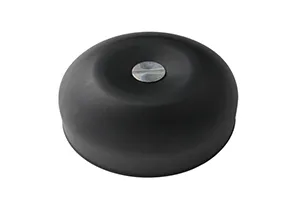

    Rubber Diaphragm 2.0L
    Rubber Diaphragm 2.0L

    Size: Ø135.2×88.5mm
    Factory code: SN905116

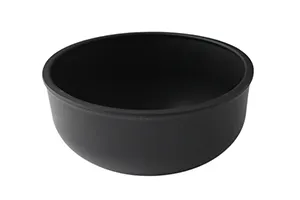

    Rubber Diaphragm 2.8L
    Rubber Diaphragm 2.8L

    Size: Ø151.2×108mm
    Factory code: SN905123

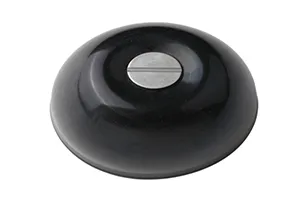

    Rubber Diaphragm 0.5L
    Rubber Diaphragm 0.5L

    Size: Ø95.7×52mm
    Factory code: SN905117

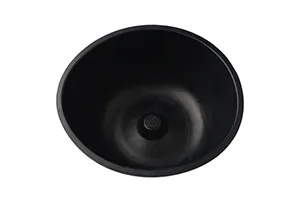

    Rubber Diaphragm 1.4L
    Rubber Diaphragm 1.4L

    Size: Ø135.2×70mm
    Factory code: SN905115

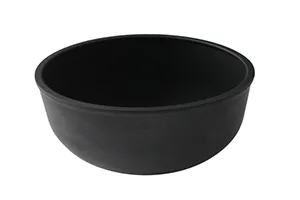

    Rubber Diaphragm 0.75L
    Rubber Diaphragm 0.75L

    Size: Ø105.8×61mm
    Factory code: SN905110

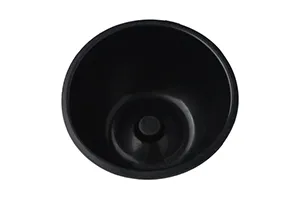

    Rubber Diaphragm 1.0L
    Rubber Diaphragm 1.0L

    Size: Ø119.5×66.4mm
    Factory code: SN905125

    Available Materials

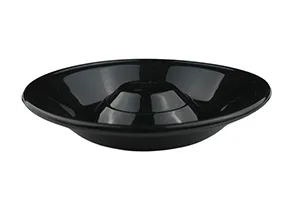

    • Graphene composite materials for temperature resistanceGraphene composite materials for temperature resistance

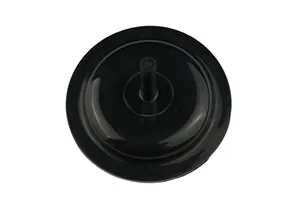

    • Tear-resistant and wear-resistant modified rubber materialsTear-resistant and wear-resistant modified rubber materials

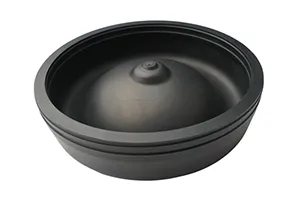

    • Gas-tight composite materialsGas-tight composite materials

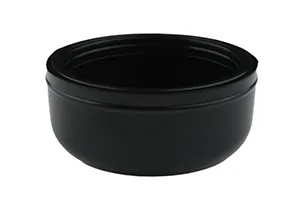

    • Low-temperature resistant composite materialsLow-temperature resistant composite materials

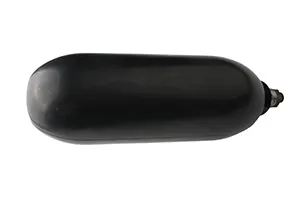

    • Acid-resistant composite materialsAcid-resistant composite materials

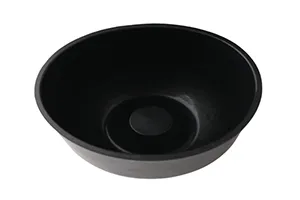

    • High fatigue-resistance materials High fatigue-resistance materials
    Applications

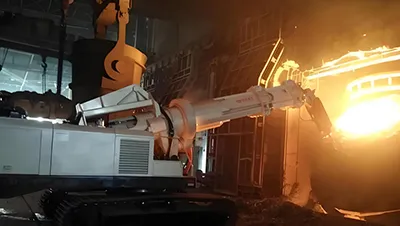

    • Rubber diaphragm for furnace dismantling machines in steel plantsRubber diaphragm for furnace dismantling machines in steel plants
    • Rubber diaphragm for hydraulic power units in marine applications Rubber diaphragm for hydraulic power units in marine applications
    • Rubber diaphragm for rock drill machines Rubber diaphragm for rock drill machines
    • Rubber diaphragm for wind power systemsRubber diaphragm for wind power systems

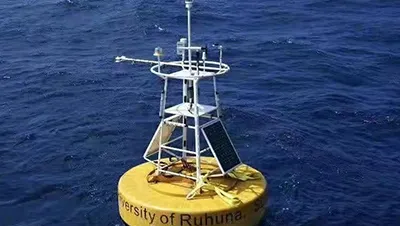

    • Rubber diaphragm for offshore and deep-sea equipmentRubber diaphragm for offshore and deep-sea equipment

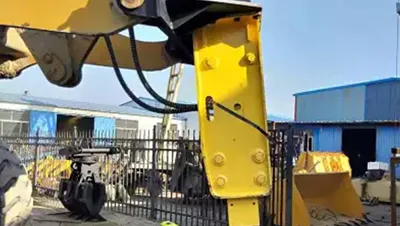

    • Rubber diaphragm for construction machineryRubber diaphragm for construction machinery
    • Rubber diaphragm for agricultural machineryRubber diaphragm for agricultural machinery

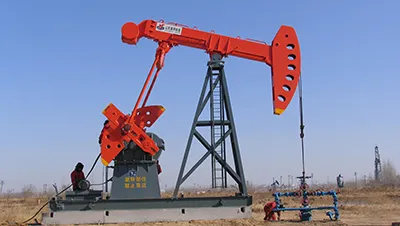

    • Rubber diaphragm for oil extraction equipmentRubber diaphragm for oil extraction equipment
    Case Studies
    • Major construction machinery manufacturersMajor construction machinery manufacturers
    • Aerospace component factory Aerospace component factory
    • Strategic partnership agreements with South Korean companiesStrategic partnership agreements with South Korean companies
    • Long-term cooperation with several Fortune Global 500 enterprisesLong-term cooperation with several Fortune Global 500 enterprises
    • On-site contract signing with international partnersOn-site contract signing with international partners
    • Visit by experts from the Institution of Engineering and Technology (UK) to the Simker laboratoryVisit by experts from the Institution of Engineering and Technology (UK) to the Simker laboratory
    • Joint R&D projects with German Industry 4.0 laboratoriesJoint R&D projects with German Industry 4.0 laboratories
    • Joint R&D and technical collaboration with German laboratoriesJoint R&D and technical collaboration with German laboratories
    Let’s Create Your Custom Rubber Components

    Talk to our experts to work out tailored rubber solutions for your industrial applications.
    Other Industrial Rubber Components
    Find Products by Application
    Industrial Rubber Components Manufacturer
      1. R&D Team
      2. R&D Team Led by company founder Mr. Zhao Huijiang, a UK Chartered Engineer and IET member, the R&D team has over two decades of deep industry experience. Mr. Zhao is a specialist in material formulations, rubber diaphragm design, and accumulator engineering.
      1. Product Design
      2. Product Design During the product design phase, Simker employs advanced Computer-Aided Design (CAD) and Computer-Aided Engineering (SOLIDWORKS) tools to perform structural simulation and analysis, ensuring optimal dimensions and geometry while maintaining required performance standards.
      1. Quality Control
      2. Quality Control The company has obtained ISO 9001 quality management system certification and established enterprise standards filed with the Bureau of Quality and Technical Supervision.

    The service life primarily depends on the material, formulation, and operating environment.

    Provide the matching equipment model, diaphragm drawing, working conditions, technical standards, material requirements, and any industry certification to avoid mismatching.

    Graphene enhances high-temperature resistance, broadens the operational temperature range, improves aging resistance, and extends service life, enabling reliable performance under complex environmental conditions.

    Simker’s diaphragms help avoid costs associated with frequent replacements, downtime losses, and reduced operational efficiency, minimizing lifecycle expenses and production risks.

    Mining diaphragms incorporate graphene dispersion and nano-modification technologies, providing high strength, toughness, wear and corrosion resistance, and improved tear, fatigue, and thermal stability.
